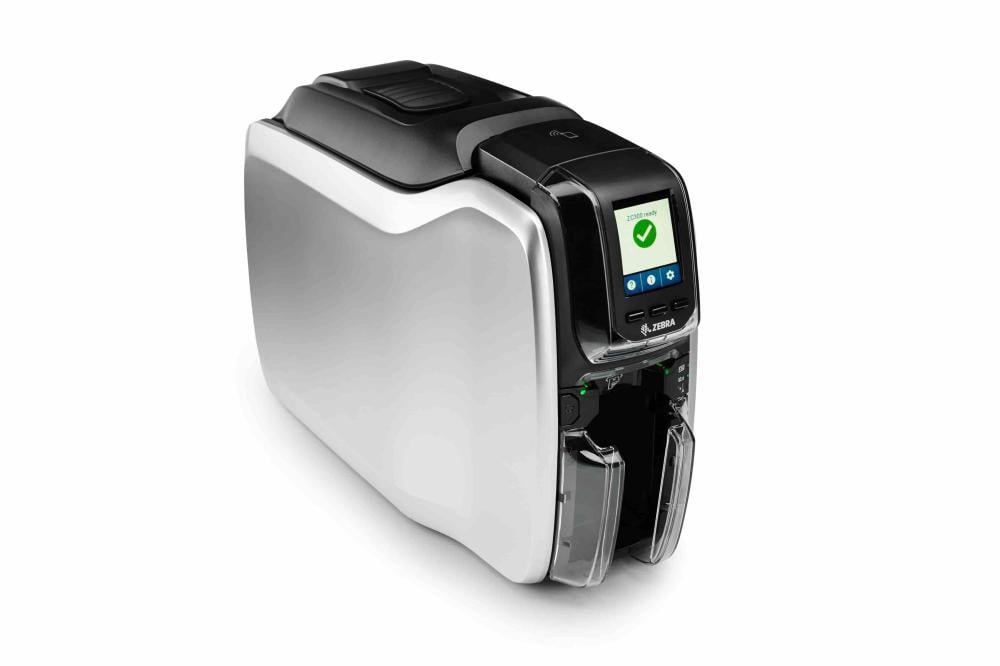

zc31 and zc32
STANDARD FEATURES
- 300 dpi (11.8 dots/mm) print resolution
- 2 GB flash memory
- Image size: 1006 × 640 pixels
- Auto calibration of ribbon
- USB 2.0 and Ethernet 10/100 connectivity

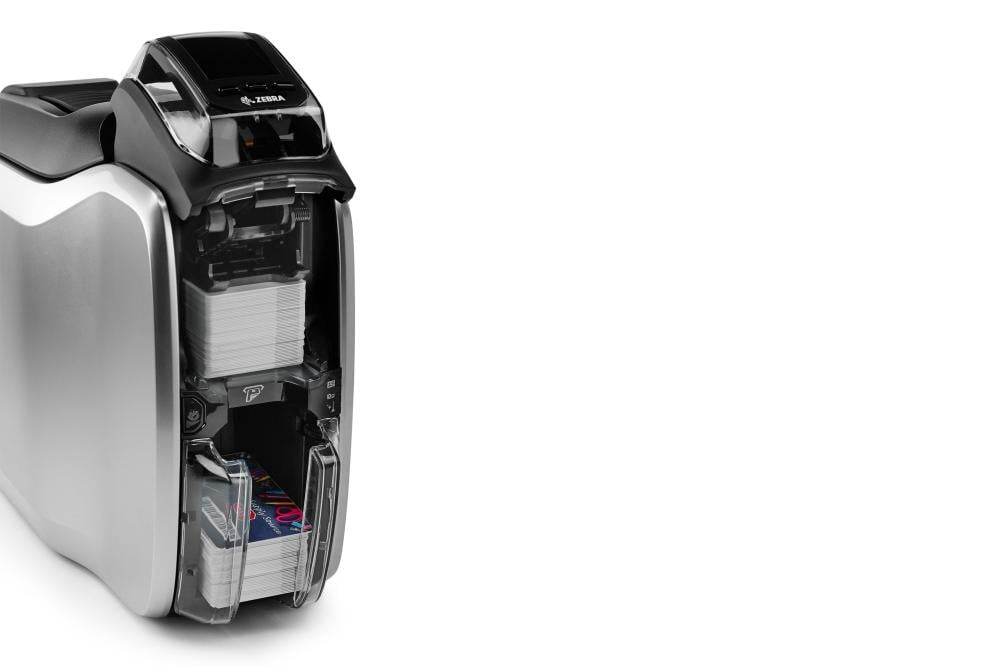

- 100-card capacity auto-adjusting input hopper (30 mil)
- 100-card capacity output hopper (30 mil)
- Manual card feeding capability with LED bezel
- Graphical color LCD
- 3 tricolor printer status indicator lights
- Kensington™ secure lock slot
- Print Touch NFC tag for online printer help and documentation access
- Printer host authentication
- Data encryption
PHYSICAL CHARACTERISTICS
Dimensions
- Single-sided: 10.2 in H × 6.2 in W × 15.1 in D (258 mm H × 157 mm W × 383 mm D)
- Dual-sided: 10.2 in H × 6.2 in W × 18.4 in D (258 mm H × 157 mm W × 468 mm D)
Weight
- Single-sided: 8.8 lbs (4.0 kg)
- Dual-sided: 9.7 lbs (4.4 kg)
PRINTING SPECIFICATIONS
- Dye-sublimation thermal transfer, direct-to-card
- Full-color or monochrome printing
- Single- and dual-sided printing
- Edge-to-edge on standard CR-80 media
- Throughput (batch printing, via USB; may vary by PC):
- 900 cards/hour single-sided monochrome
- 200 cards/hour single-sided YMCKO
- 140 cards/hour dual-sided YMCKOK
- 450 cards/hour dual-sided monochrome
COMMUNICATIONS & INTERFACE
- USB 2.0 — Standard
- Built-in 10/100 Ethernet — Standard
- 802.11ac — Optional
ENCODING OPTIONS & SPECIFICATIONS
- Magnetic stripe encoder — ISO 7811 (tracks 1, 2, 3; high/low coercivity; new or pre-encoded)
- Contactless smart card encoder: Combined MIFARE ISO 14443 A/B (13.56 MHz) with 1 SAM slot; optional iCLASS ISO 15693 support
- Contact encoder: ISO 7816 (with EMV Level 1 certification)
- ISO 7816 Smart Card Contact Station for third-party external encoders
- EPCglobal Gen 2 UHF RFID encoder
