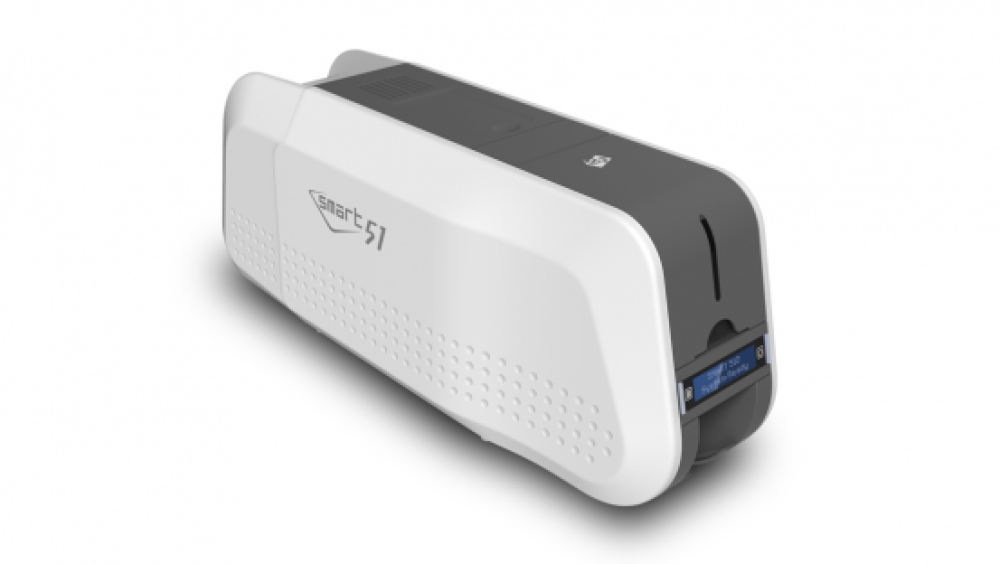

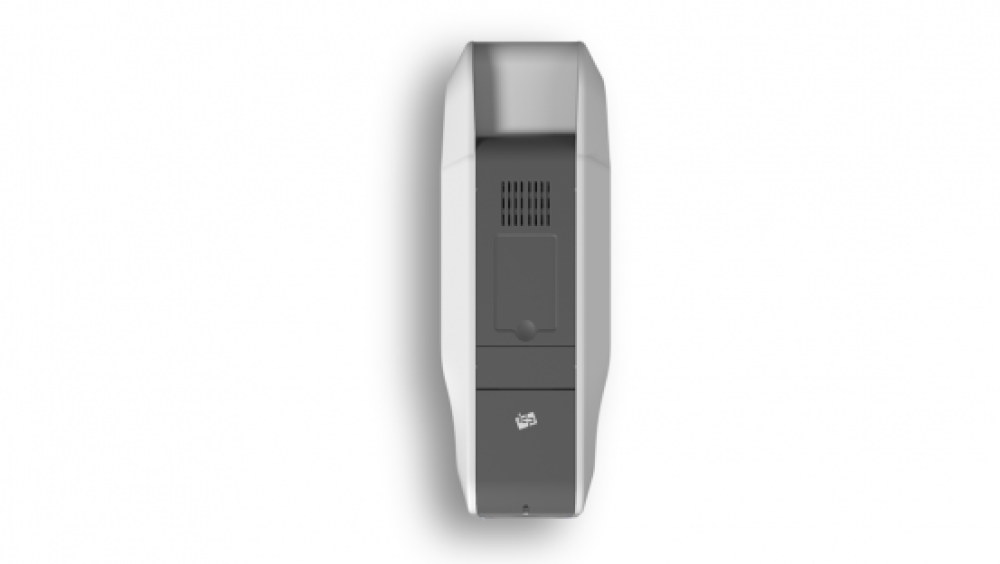

[653170] SMART-51S and [653171] SMART-51D
صناعة كورية made in Korea
PRINTING
Print Type: Dye-Sublimation
Print Area: Edge-to-Edge
Resolution: 300 dpi
Single-Sided Printing: Yes
Dual-Sided Printing: Yes (Duplex)
CARD
Feeding: Automatic
Size: ISO CR80 or ISO CR79 (option – factory installed)
Thickness: 0.38 mm (15 mil) / 0.76 mm (30 mil)
Type: PVC, PET, Composite PVC
PRINT SPEED (approx.)
Monochrome: 5 sec/card (up to 720 cards/hour)
YMCKO: Max 17 sec/card (≈ 212 cards/hour)
YMCKOK: Max 22 sec/card (≈ 164 cards/hour)
CAPACITY
Input Hopper: 100 / 200 cards (with cover open)
Output Hopper: Front 40 cards / Rear 100 cards
Optional rear-side stacker
SYSTEM
Memory: 64 MB RAM
Display: 2-line LCD
Control Panel: 2 LED buttons
Supported Platforms: Windows 7/8/10, macOS, Linux
Communication: USB (standard), Ethernet (option)
Power Supply: Free Voltage (AC100/220V, 50–60 Hz)
Power Consumption: 48 W
Operating Temp/Humidity: 15–35 °C / 35–70%
DIMENSIONS
165 × 498 × 210 mm (W × L × H)
6.5 × 19.6 × 8.3 in
WEIGHT
5.2 kg / 11.5 lbs
ENCODING OPTIONS
Magnetic: ISO 7811 (Track 1/2/3, Read/Write, HiCo/LoCo), JIS II
Contact: ISO 7816 (ID-1)
Contactless: MIFARE, ISO 14443 (Type A/B), ISO 15693, DESFire, iCLASS
